Compact 500

Compact 500 is equipped with a wide range of advanced audio processing, such as volume controllers, routing, mixing, switching and prioritizingmixing, equalizers and switching / prioritizing which make Compact 500 fit for the job.

The integrated local message storage modules , with a maximum storage capacity of 16 audio files, can be distributed simultaneously over the 6 local output lines serving phased-evacuation. The status of the digital audio message storage and of the messages themselves are monitored. All message-storage modules are synchronized between multiple Compact 500 output lines for synchronized large area incident warning.

The Compact 500 comes with a special battery bracket that can hold batteries from a minimum of 12 V/10 AH to a maximum of 12 V/55 AH. The integral battery charger, PSE, has been certified to charged up to 12 V/55 AH within 24-hours.

For a standard fully equipped installation with 3-DA200 amplifiers and a backup DA-200 amplifier, that needs to run for the minimum normative period of 30 minutes on full-load and 24 hours in quiescent state, it requires 12 VDC 38 AH batteries.

In case de Compact 500 is not fully equipped with the maximum number of DA200 amplifiers and/or not loaded to the maximum extent of 600 W, there is a choice of batteries in the range of 12 V/10 AH to 12 V/55 AH, or when longer selfsupporting periods are required, i.e. when there is no maintenance contract in place.

4EVAC Manager is a management application tool that provides a comprehensive application specific interface to your Compact 500 networked system. The software provides an easily accessible view of your overall system status and makes system operation very easy through an intuitive and secure configuration tool that makes complex programming and service easier than ever.

4EVAC Manager is the ideal addition to your Compact 500 system management in complex facilities.

• Configuration software supports all integrated system components
• Firmware upgrades in the field
• Flashcard exchange protocol for quick system update / programming without the direct need for a computer

4EVAC's GPIO is a din-rail mounted I/O interface with input surveillance and a redundant network link, dedicated to the 4EVAC system network. It features programmable 16 in / 16 out pins, mandatory EVAC and FAULT status output contacts, a monitored analogue audio input and a monitored RS-485 interface for integration with third-party external control panels.

Remote controlled zone-expander module

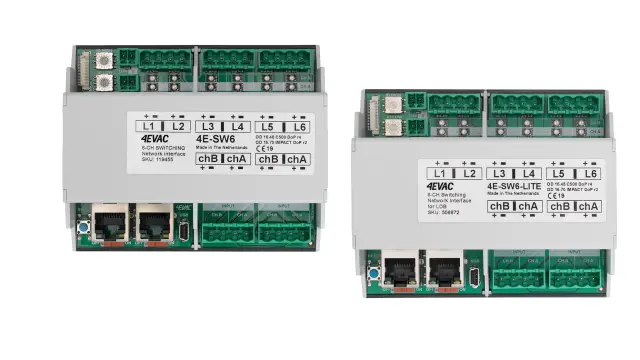

4E-SW6 is a DIN-rail mounted 100V audio matrix with 2 inputs and 6 outputs, dedicated for both 4EVAC Compact and Impact systems. 4E-SW6 has two 100V audio inputs (CHA, CHB) which connect directly to amplifier outputs. 4E-SW6 expands the number of independent loudspeaker lines with individual surveillance and short-circuit isolator units (Loopdrive). Each loudspeaker line can handle up to 200 W load and can be assigned as a separate individual zone. One input can accept maximum 500 W of power. This is also the limit for a total load of all 6 output lines together.

The 4E-SW6-LITE has been developed to be used with Loopdrive LDB on the outputs only.

4E-FMWB is a low-cost and effective networked fireman microphone wall-box. It easily integrates with both Compact and Impact voice alarm systems.
